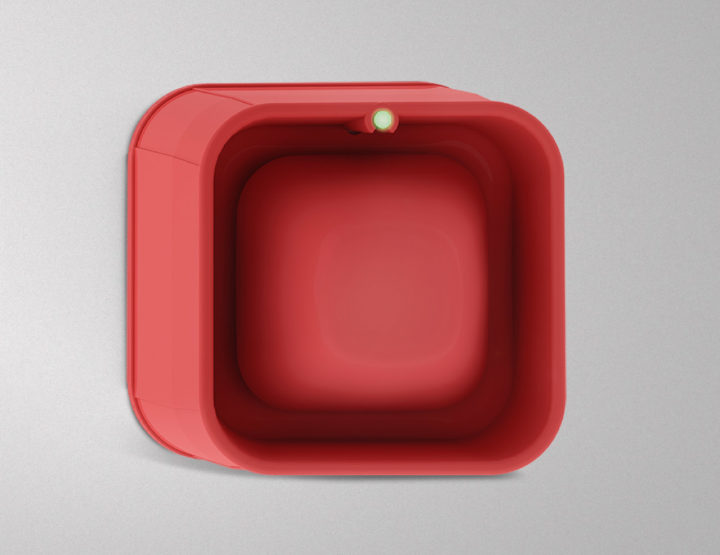

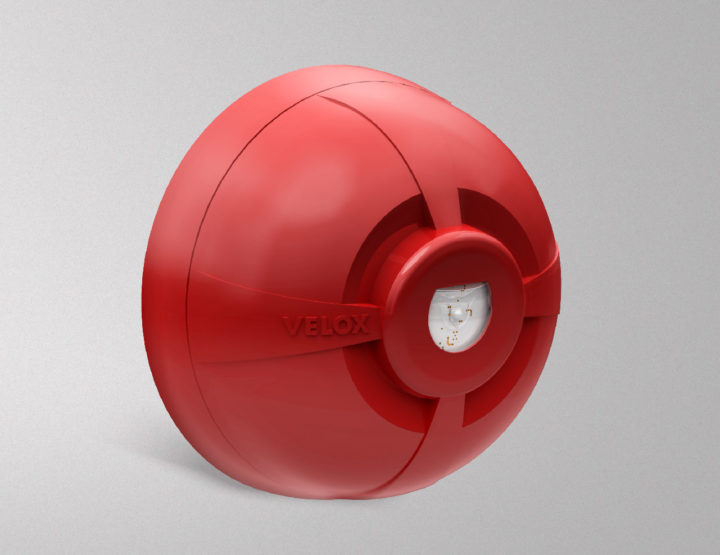

VELOX Sounder/Flasher 403xx Loop Powered Addressable Sounder Flasher Range

Product Number: 403xx SERIES


VELOX new range of 403xx range Sounders and Sounder/Flasher deploy break-through technology superior to anything seem in this sector of the industry before.The patented VERS (VELOX Energy Recovery System) technology allows the re-direct the kinetic energy of the sounder back to a super-capacitor which allows to save upto 80% of the wasted energy, the result is 3mA power consumption only to power up this device up to 106dBA of sound, and and a flasher that covers 9m x 9m room like no other device in the market.

The lower power consumption allows 133 sounder/flashers to be installed on 4000 range of panels and up to 100 sounder/flashers on 5000 and 6000 range of panels. All powered and connected on the same loop.


Read More Order Inquiry


Key Features
VELOX Sounder/flasher 403xx SERIES
World’s lowest current consumption at only 3mA

  • Loop Powered Addressable Sounder Flasher range
  • Compliance with EN54-3 and EN54-23 (approval pending)
  • Automatic & Manual Addressing Features
  • In-built short circuit isolator in each device
  • High-Intensity White FlashTone/volume selection from the panel or manually
Patented technology for the Micro power technology – VELOX Energy Recovery System (VERS)

  • VELOX new range of 403xx range Sounders and Sounder/Flasher deploy break-through technology superior to anything seem in this sector of the industry before. The patented VERS (VELOX Energy Recovery System) technology allows the re-direct the kinetic energy of the sounder back to a super-capacitor which allows to save upto 80% of the wasted energy, the result is 3mA power consumption only to power up this device.
  • Unique lens to cover 9m x 9m room wall mounted, or 6m x 6m when installed from the ceiling with only 3mA of current
 Up to 133 Sounder/flashers can be connected on a single loop

  • The lower power consumption allows 133 sounder/flashers to be installed on 4000 range of panels and up to 100 sounder/flashers on 5000 and 6000 range of panels. All powered and connected on the same loop.
  • The advanced lens technology allows the flashers to cover a room of 6m X 6m when installed at 2.4m ceiling height, or 9m x 9m room when installed on the wall at  2.4m height, at 3mA of current consumption only. The VELOX flashers are supplied with various type of bases for indoor or outdoor installation, and it can be mounted on the wall or ceiling.
World’s first Tri-color status LED indicator with Shallow base IP21C and deep base IP65C versions

  • Deep base variants independently certified to IP65.
  • Tone/volume selection from the panel or manually.
  • Sound output of 106dBA with only 3mA of current consumption
  • Selectable flashing rate as per standards.

Downloads

VELOX Sounder Flasher 4032x - Datasheet (356.95 KB)
VELOX Flasher 40340 - Datasheet (156.83 KB)
