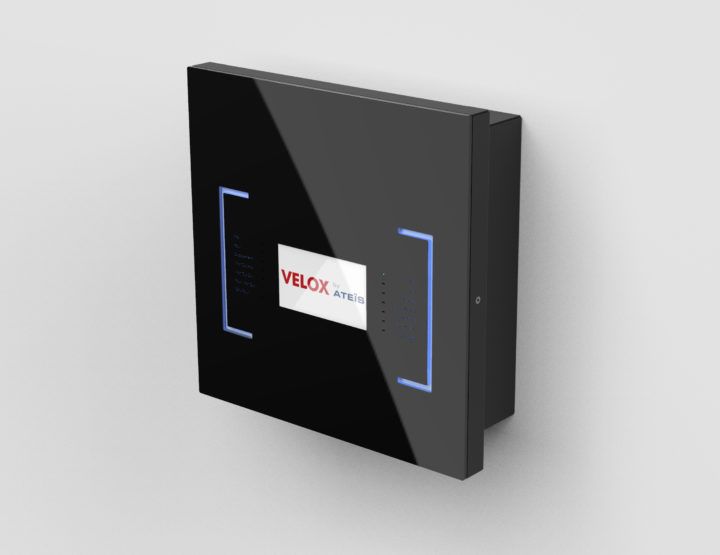

VELOX VITA 6100 Analogue Addressable 4G Fire Detection and Alarm Control Panel

Product Number: VITA 6100

VELOX VITA is marking a new era of innovation in fire detection and alarm system technology. Fully integrated with the VELOX range of devices and protocol, it surpasses the performance  of any traditional addressable panels in the market by far. Based on state of the art 32-bit microprocessor technology, the VELOX VITA can communicate swiftly over a 1Km loop length, fully loaded with 240 loop devices. The touch screen user interface enhances the user’s experience by making navigation through menus, programming and response times swifter, easier and more effective.

The Innovative VELOX VITA Introducing the unique ‘Bakhoor Mode’ feature which will help eliminate unwanted Alarms caused by burning incense, charcoal, smoking and even cooking in the home.  The Bakhoor mode is easily activated by the home owner and gives a unique timed ‘filter’ that will ignore smoke activations from specific detectors for the timed period. Once the timed period has expired the detectors will revert to their normal detection state. Whilst in Bakhoor mode the multi-sensor detectors will still detect heat thus ensuring a ‘real’ fire will still be detected and the alarm triggered in the normal way.

Read More Order Inquiry

Key Features

Smart Fire Detection & Alarm Control Panel Based on 4G & IoT Technology.

  • 4G Connectivity with Fully redundant Ethernet connection.
  • Fully IoT based design for smart city connectivity and applications.
  • Fully EN54 part 2 & 4 Certified.
  • One loop with 240 devices loop powered.


NO MORE.. nuisance Alarms
with SMART Fire Detection Technology

  • The Innovative VELOX VITA Introducing the unique ‘Bakhoor Mode’ feature which will help
    eliminate unwanted Alarms caused by burning incense, charcoal, smoking and even cooking
    in the home.
  • Advanced enable /disable and false alarm rejection technology ( Bakhoor Mode).
  • Aesthetically pleasing coloured LED panel lighting

Bakhoor Mode

Smart Monitoring & Controlling remotely over

  • Fully Monitored GUI ‘‘Graphical User Interface’’.
  • Comprehensive maintenance over any smart device.
  • Direct reporting to Civil Defence & Maintenance service provider.
  • Pinpoints the fire incident location and fire spread



FULLY Approved by EN54 2&4 And UAE civil Defense
It’s Ready For Shipping

  • Fully colored Touch Screen panel.
  • Support 10 languages and more to come.
  • Fully loop powered topology
  • First fix and semi-flush enclosure with multiple color finish

All of the above features coming
inside30x30cm enclosure!!

  • Semi/Full-Flushed panel
  • Available in Different Colors ( Black, White, Grey)
  • Aesthetically pleasing colored LED panel lighting.



Technical Specs


Operating keyboard Touchscreen
Optical messages Led
Acoustic messages Buzzer
Visualisation of the events 480×272 TFT 4.3”
Serial output for PC N° 1 – RS232
Event log Max. 850
Working mode Guarded/Unguarded
Programming/Management hardware Multilevel password
Number of analogue lines One loop
Exclusion of the analogue line Single – multiple
I/O Modules / Detectors for each line Max. 240
Programming type Manual or by PC
Configuration of the analogue line 192 software zones
Analogue lines connection Open or closed loop
Length of the detector lines Max. 2000m
Type of cable Shielded


VELOXVITA 6100 -Datasheet (193.86 KB)
