Product Number: VCS-AB-EN

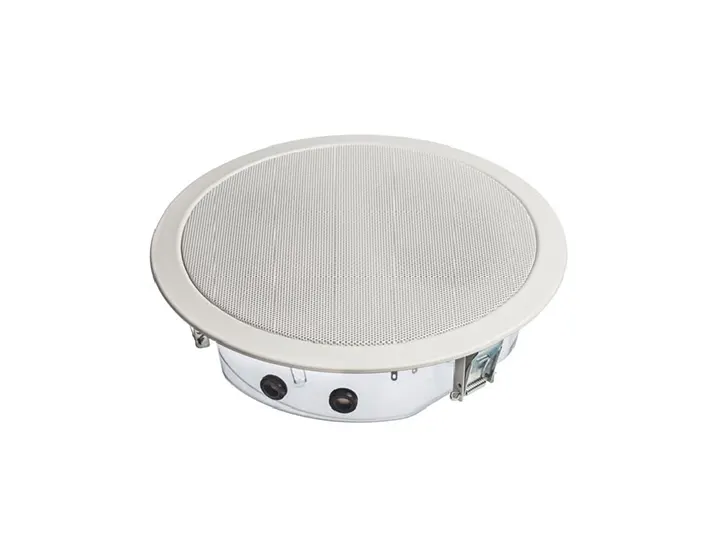

A/B-line ceiling speaker with high quality plastic contact protection for voice alarm applications, EN 54-24 certified, suitable for voice announcements and background music with excellent sound quality in buildings.
The 2x6W powered speaker is equipped with two fullrange loudspeakers and two 100V transformer with 3 power adjustments, each. An extremely flat construction method allows a low mounting depth. For additional safety, ceramic blocks, thermal fuses are provided and the speaker chassis is impregnated against dampness. Protection class IP 21C secures the speaker against the impact of environmental influences.
Read More Order Inquiry
Description
A/B-line ceiling speaker with high quality plastic contact protection for voice alarm applications, EN 54-24 certified, suitable for voice announcements and background music with excellent sound quality in buildings.
The 2x6W powered speaker is equipped with two fullrange loudspeakers and two 100V transformer with 3 power adjustments, each. An extremely flat construction method allows a low mounting depth. For additional safety, ceramic blocks, thermal fuses are provided and the speaker chassis is impregnated against dampness. Protection class IP 21C secures the speaker against the impact of environmental influences.
Quick and easy mounting with spring clamps and short tension distance. Perfectly suitable for installations where the installation depth is very limited. This speaker is suitable for a ceiling strength of 3 – 45 mm.
Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately
Technical Specs
Technical Data (Electrical)
| Feature | Description |
| Power | 2×6/3/1,5 W |
| Impedance (100V) | 2 x 1667/3333/6667 ohm |
| Frequency Range | 103 – 20.100 Hz (single) 107 – 19.600 Hz (double) |
| Frequency Response | 96 – 23.300 Hz (single) 101 – 22.900 Hz(double) |
| SPL 1W/1m, peak | 88,0 dB (single) 94,0 dB (double) |
| SPL , 1W/4m, peak | 76,0 dB (single) 82,0 dB (double) |
| SPL Pmax/4m, peak | 83 dB (single) 89 dB (double) |
| SPL, rated noise power / 4m | 83,0 dB (single) 88,0 dB (double) |
| Sensitivity EN54-24, 1W/4m | 73,0 dB (single) 77,0 dB (double) |
| Sensitivity EN54-24, 1W/1m | 85,0 dB (single) 89,0 dB (double) |
| Dispersion -6dB, 500Hz | single h/v 180° double h/v 180° |
| Dispersion -6dB, 1KHz | single h/v 180° double h/v 180° |
| Dispersion -6dB, 2KHz | single h/v 180° double h/v 77°/137° |
| Dispersion -6dB, 4KHz | single h/v 150°/100° double h/v 33°/90° |
Technical Data (Mechanical)
| Feature | Description |
| Dimensions | 246×66 mm |
| IP Rating | IP21 |
| Weight (net) | 1,10 kg |
| Ceiling Cut-out | 218 mm |
| Temperature range | -10 / +55 C° |
| Mounting | spring clamp |
| Connector | 2-pin ceramic block |
| Colour | RAL 9016 |
Order code
| Part No. | Description |
| VCS-AB-EN | Ceiling Speaker for AB-Cabling , 2×6 watts, RAL 9016, metal, with thermal fuse, ceramic block,certified EN 54-24, BS 5839 compliant, IP21C |
Downloads
| VELOX VCS-AB-EN | (492.87 KB) |
|
