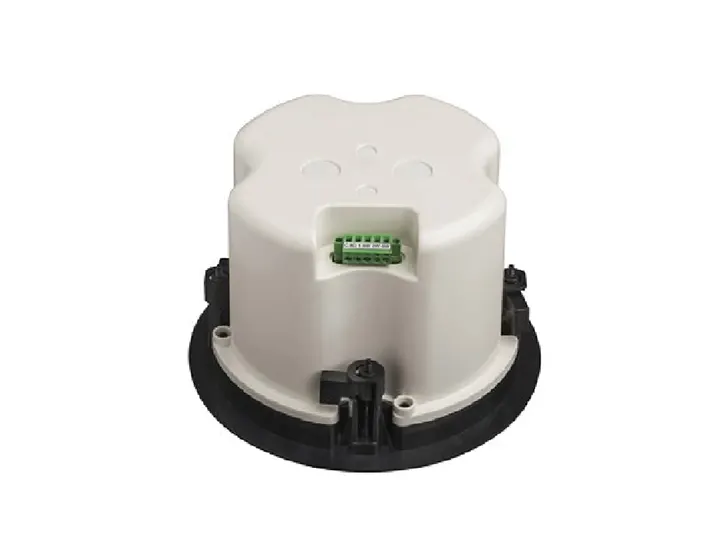

VCS500-2W-25-EN 5” 2-Way 25W Ceiling speaker,ABS, Firedome, certified EN 54-24

Product Number: VCS500-2W-25-EN


2-Way ceiling speaker with fire dome for voice alarm applications certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The 25W powered speaker is equipped with a 130mm 2-way system featuring a high-quality tweeter and a 100V transformer with 4 power adjustments. Low impedance operation is also possible.


Read More Order Inquiry


Description

2-Way ceiling speaker with fire dome for voice alarm applications certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The 25W powered speaker is equipped with a 130mm 2-way system featuring a high-quality tweeter and a 100V transformer with 4 power adjustments. Low impedance operation is also possible.

The impact-resistant plastic housing in RAL 9016 guarantees long-term durability. Thanks to an innovative magnetic fastening, the finely perforated speaker grille can be removed quickly and e.g. replaced by a grille with a different color, even after the installation.

A thermal fuse provides additional safety. The speaker chassis is impregnated against dampness. Protection class IP 21C secures the speaker against the risks of environmental influences.

Fast and easy installation via a screw mounting system.
• 2-way system
• thermal fuse
• magnetic fastening of grille

Technical Specs

Technical Data (Electrical)

Feature Description
Power 25/12.5/6.25 (8) W
Impedance (100V) 400/800/1600 ohm
Frequency Range 104 – 22.700 Hz
Frequency Response 111 – 21.600 Hz
SPL 1W/1m, peak 92,1 dB
SPL , 1W/4m, peak 80,1 dB
SPL Pmax/4m, peak 90,2 dB
SPL, rated noise power / 4m 90,2 dB
Sensitivity EN54-24, 1W/4m 75,8 dB
Sensitivity EN54-24, 1W/1m 87,8 dB
Dispersion -6dB, 500Hz h/v 180°
Dispersion -6dB, 1KHz h/v 180°
Dispersion -6dB, 2KHz h/v 110°
Dispersion -6dB, 4KHz h/v 72°

Technical Data (Mechanical)

Feature Description
Dimensions 216,5 x 141 mm
IP Rating IP21
Weight (net) 1,80 kg
Ceiling Cut-out 186 mm
Temperature range -10 / +55 C°
Mounting Screw system
Connector 5-pin screw terminal
Maximum cable cross section 4,9mm²
Max. cable cross section loop 2×4,9mm²
Colour RAL 9016

Order code

Part No. Description
VCS500-2W-25-EN 5” 2-Way 25W Ceiling speaker,RAL 9016, ABS, Firedome, certified EN 54-24

Downloads

VCS500-2W-25-EN (426.63 KB)
