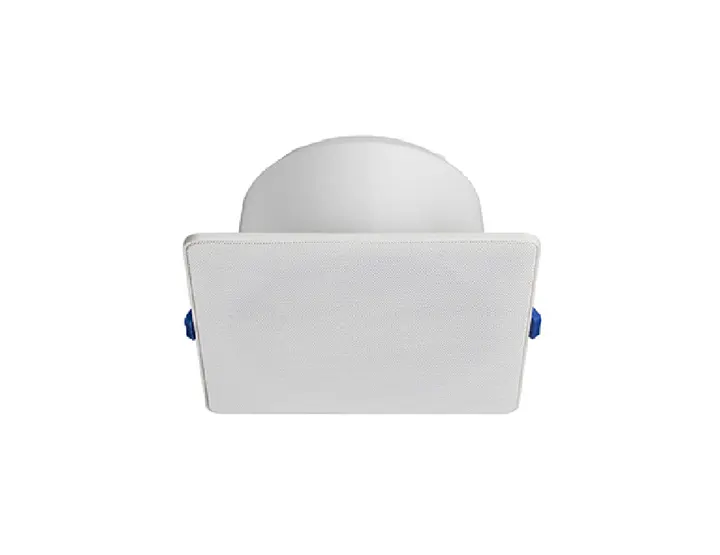

VCS500-SQ-FL-EN 5” Square Frameless Ceiling speaker, 6 watts, certified EN 54-24, BS 5839 compliant, IP21C,

Product Number: Part No. Description VELOX VCS500-SQ-FL-EN


Inspired by the look of contemporary LED lights, the frameless design of the new 6W loudspeakers has all the makings of an instant classic. The 6W powered square speaker is equipped with a 130mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder coated metal in RAL 9016 guarantees long-term stability. For additional reliability the speaker is impregnated against wetness.


Read More Order Inquiry


Description

Inspired by the look of contemporary LED lights, the frameless design of the new 6W loudspeakers has all the makings of an instant classic. The 6W powered square speaker is equipped with a 130mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder coated metal in RAL 9016 guarantees long-term stability. For additional reliability the speaker is impregnated against wetness.

The speaker is also secured with protection class IP 21C against the security risks of environmental influences. Fast and easy installation by WAGO 221 connector and strong spring clamps with protective caps for vibration damping. The connecting cables can be
supplied by rubber grommets in the firedome.

Special paint of the speaker in 4-digit RAL- or NCS- colour available at extra cost.

The firedome is included in the delivery. This speaker is suitable for a ceiling strength of about 3 – 45 mm. Our specification is primarily related to solid ceilings, for
ceilings with soft materials a higher ceiling thicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and
manufacturers, we recommend to build in a sample of
the speaker to match the requirements accurately.
• frameless design
• suitable also for very thin ceil

Technical Specs

Technical Data (Electrical)

Feature Description
Power 16/3/1,5 W
Impedance (100V) 1667/3333/6667 ohm
Frequency Range 80 – 20.000 Hz
Frequency Response 64 – 21.500 Hz
SPL 1W/1m, peak 90,0 dB
SPL , 1W/4m, peak 85,0 dB
Sensitivity EN54-24, 1W/4m 78,0 dB
Sensitivity EN54-24, 1W/1m 90,0 dB
Dispersion -6dB, 500Hz h/v 180°
Dispersion -6dB, 1KHz h/v 180°
Dispersion -6dB, 2KHz h/v 150°
Dispersion -6dB, 4KHz h/v 75

Technical Data (Mechanical)

Feature Description
Dimensions 180 x 180 x 93 mm
IP Rating IP21
Weight (net) 0,82 kg
Ceiling Cut-out 159 – 165 mm
Temperature range -10 / +55 C°
Mounting Quick fit mounting
Connector WAGO 221 connector
Maximum cable cross section 4mm²
Colour RAL 9016

Order code

Part No. Description
VELOX VCS500-SQ-FL-EN 5” Square Frameless Ceiling speaker, 6 watts, RAL 9016, metal, with firedome
and WAGO-connector 221, certified EN 54-24, BS 5839 compliant, IP21C,

Downloads

Edit VELOX VCS500-SQ-FL-EN (375.19 KB)
