Product Number: VMS-50-WH/BK

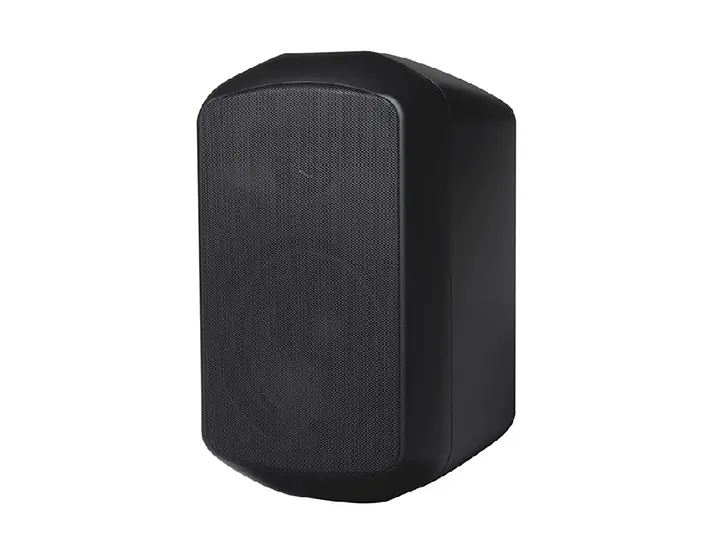

The compact monitor speaker impresses by a sophisticated design and by its powerful sound. Perfectly suitable for installations where high sound quality is needed.
The 50W powered speaker is equipped with a high quality 2-way system and a 100V transformer with 3 power adjustments. Also, the low impedance operation with 8 ohm is possible. The impact-resistant, UVresistant ABS plastic housing in white assures enduring
stability. For additional reliability, a wetness impregnation of the speaker is provided. The speaker is also secured with protection class IP 65 against the risks of environmental influences.
Read More Order Inquiry
Description
The compact monitor speaker impresses by a sophisticated design and by its powerful sound. Perfectly suitable for installations where high sound quality is needed.
The 50W powered speaker is equipped with a high quality 2-way system and a 100V transformer with 3 power adjustments. Also, the low impedance operation with 8 ohm is possible. The impact-resistant, UVresistant ABS plastic housing in white assures enduring
stability. For additional reliability, a wetness impregnation of the speaker is provided. The speaker is also secured with protection class IP 65 against the risks of environmental influences.
A comfortable connection of the speaker is made possible by a stable screw terminal with contact protection. Quick and easy mounting with wall mounting bracket. Polar Diagrams
• Distinctive design
• Excellent sound
• IP 65
Technical Specs
Technical Data (Electrical)
| Feature | Description |
| Power | 50/25/12,5/6,25 (8ohm) W |
| Impedance (100V) | 200/400/800/1600 ohm |
| Frequency Range | 52 – 24.000 Hz |
| Frequency Response | 48 – 25.000 Hz |
| SPL IEC268-5 , 1W/1m | 84.8 dB |
| SPL EN54-24, Pmax/4m | 91.0 dB |
| Sensitivity EN54-24, 1W/4m | 72.8 dB |
| Sensitivity EN54-24, 1W/1m | 84.8 dB |
| Dispersion -6dB, 500Hz | 360° (h) 360° (v) |
| Dispersion -6dB, 1KHz | 200° (h) 155° (v) |
| Dispersion -6dB, 2KHz | 110° (h) 120° (v) |
| Dispersion -6dB, 4KHz | 80° (h) 25° (v) |
Technical Data (Mechanical)
| Feature | Description |
| Dimensions | 326x202x192 mm |
| IP Rating | IP65 |
| Weight (net) | 3.65 kg |
| Ceiling Cut-out | 186 mm |
| Temperature range | -25 / +70 °C |
| Mounting | Swivel bracket |
| Connector | 6-pin screw terminal |
| Maximum cable cross section | 4.9mm² |
| Max. cable cross section loop | 2×1.2mm² |
| Colour | white/Black |
Order code
| Part No. | Description |
| VMS-50-WH | Monitor speaker, 2-way-system, swivel bracket included, 50 – White color |
| VMS-50-BK | Monitor speaker, 2-way-system, swivel bracket included, 50 – Black color |
Downloads
| VELOX VMS-50-WH | (703.40 KB) |
|
| VELOX VMS-50-BK | (487.69 KB) |
|
