Product Number: VCS-AB-FD-EN
The VCS-AB-FD-EN is designed with two independent speakers and 100V transformers to enable an economic operation of two separated speaker lines (A/B-lines) for highest security demands. In case of a failure of one speaker line the redundancy of the speakers and the transformers will guarantee unimpaired function. The speaker is also compliant with the British Standard BS 5839, Part 8.
The 2x6W powered speaker is equipped with two fullrange loudspeakers and two 100V transformer with 3 power adjustments, each. The powder coated metal similar in RAL 9010 guarantees long-term stability. For additional safety a 2-pin ceramic connector block, thermal fuses are provided and the speaker chassis are impregnated against dampness. Protection class IP 55 secures the speaker against the impact of environmental influences.
Read More Order Inquiry
Description
The VCS-AB-FD-EN is designed with two independent speakers and 100V transformers to enable an economic operation of two separated speaker lines (A/B-lines) for highest security demands. In case of a failure of one speaker line the redundancy of the speakers and the transformers will guarantee unimpaired function. The speaker is also compliant with the British Standard BS 5839, Part 8.
The 2x6W powered speaker is equipped with two fullrange loudspeakers and two 100V transformer with 3 power adjustments, each. The powder coated metal similar in RAL 9010 guarantees long-term stability. For additional safety a 2-pin ceramic connector block, thermal fuses are provided and the speaker chassis are impregnated against dampness. Protection class IP 55 secures the speaker against the impact of environmental influences.

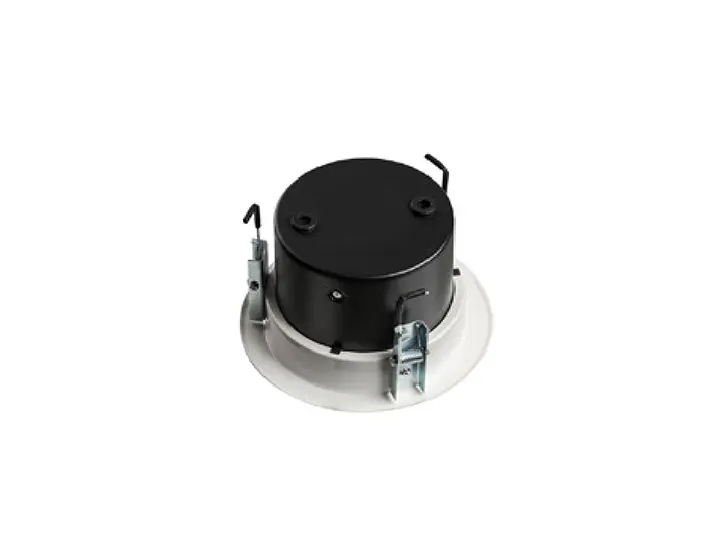

Quick and easy mounting with spring clamps and short tension distance.The connecting cables can be supplied by 4 rubber grommets in the firedome. Special paint of the speaker in 4-digit RAL- or NCS- colour available at extra cost. The firedome is included in the
delivery.
This speaker is suitable for a ceiling strength of about 10-45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceilingthicknesses could be necessary. In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.
• Quick mounting
• Highest reliability
• BS 5839
Technical Specs
Technical Data (Electrical)
| Feature | Description |
| Power | 2×6/3/1,5 W |
| Impedance (100V) | 2 x 1667/3333/6667 ohm |
| Frequency Range | 162 – 18.600 Hz (single) 159 – 16.000 Hz (double) |
| Frequency Response | 125 – 23.500 Hz (single) 120 – 23.500 Hz(double) |
| SPL IEC268-5 , 1W/1m | 89,0 dB |
| SPL EN54-24, Pmax/4m | 85,0 dB (single) 91,0 dB (double) |
| Sensitivity EN54-24, 1W/4m | 77,0 dB |
| Sensitivity EN54-24, 1W/1m | 89,0 dB |
| Dispersion -6dB, 500Hz | 180° (h) s/d 180° (v) s/d |
| Dispersion -6dB, 1KHz | 160° (h) s/d 160° (v) s/d |
| Dispersion -6dB, 2KHz | 120° (h) 160° (v) single 75° (h) 90° (v) double |
| Dispersion -6dB, 4KHz | 65° (h) 120° (v) single 40° (h) 60° (v) double |
Technical Data (Mechanical)
| Feature | Description |
| Dimensions | 268×136 mm |
| IP Rating | IP55 |
| Weight (net) | 2,16 kg |
| Ceiling Cut-out | 243 mm |
| Built-in depth | 135 mm |
| Temperature range | -10 / +55 C° |
| Mounting | Snap system |
| Connector | 2-pin ceramic block |
| Terminal diameter | 3,2 mm |
| Maximum cable cross section | 8mm² (single) |
| Colour | RAL 9010 |
Order code
| Part No. | Description |
| VCS-AB-FD-EN | Ceiling Speaker for AB-Cabling , 2×6 watts, RAL 9016, metal, with thermal fuse, ceramic block,certified EN 54-24, BS 5839 compliant, IP21C, with Fire Dome |
Downloads
| VELOX VCS-AB-FD-EN | (1.09 MB) |
|
