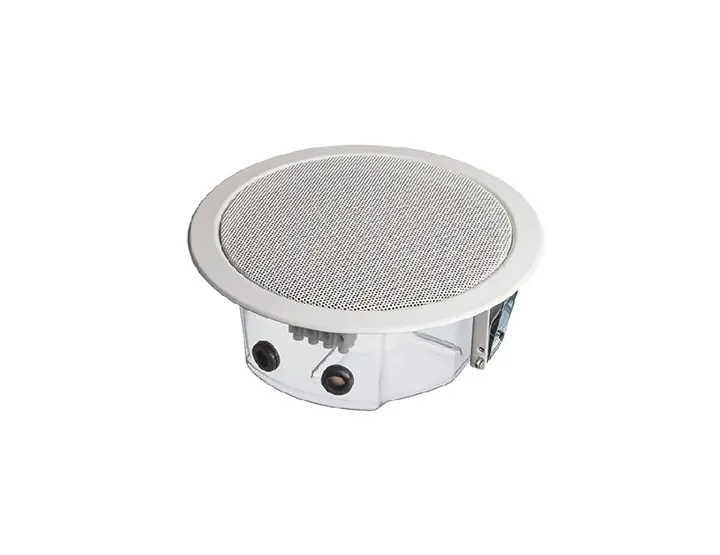

VCS500EN 5” 6W Recessed Ceiling Speake

Product Number: VCS500EN


The 6W powered speaker is equipped with a 130mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder coated metal similar to RAL 9016 guarantees long-term stability.

Thanks to an innovative air flow system, the VCS provides sound characteristics which are attributed to a conventional bass speaker. An extremely flat construction method allows a low mounting depth of only 70mm, with less than 1 kg product weight. For additional reliability the speaker is impregnated against wetness.


Read More Order Inquiry


Description

The 6W powered speaker is equipped with a 130mm full-range loudspeaker and a 100V transformer with 3 power adjustments. The powder coated metal similar to RAL 9016 guarantees long-term stability.

Thanks to an innovative air flow system, the VCS provides sound characteristics which are attributed to a conventional bass speaker. An extremely flat construction method allows a low mounting depth of only 70mm, with less than 1 kg product weight. For additional reliability the speaker is impregnated against wetness.

The speaker is also secured with protection class IP 21C against the security risks of environmental influences. Quick and easy mounting with spring clamps and short tension distance. Perfectly suitable for installations where the installation depth is very limited.
Special paint of the speaker in 4-digit RAL- or NCScolour available at extra cost. The innovative PETplastic contact protection is included in the delivery and protected by an European patent (publication no. 2768238).

This speaker is suitable for a ceiling strength of about 3 – 45 mm. Our specification is primarily related to solid ceilings, for ceilings with soft materials a higher ceiling thicknesses could be necessary.

In addition, stronger cables and other fittings may also result in changes of the appropriate setup. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately

Technical Specs

Technical Data (Electrical)

Feature Description
Power 6/3/1,5 W
Impedance (100V) 1667/3333/6667 ohm
Frequency Range 104 – 17.200 Hz
Frequency Response 57 – 24.000 Hz
SPL 1W/1m, peak 98,3 dB
SPL , 1W/4m, peak 86,3 dB
SPL Pmax/4m, peak 94 dB
SPL, rated noise power / 4m 85,0 dB
Sensitivity EN54-24, 1W/4m 74,8 db (plastic)
74,2 db (metal)
Sensitivity EN54-24, 1W/1m 86,8 dB
Dispersion -6dB, 500Hz plastic/metal 180°
Dispersion -6dB, 1KHz plastic/metal 180°
Dispersion -6dB, 2KHz plastic/metal 140°
Dispersion -6dB, 4KHz plastic/metal 85°/84°

Technical Data (Mechanical)

Feature Description
Dimensions 181,5×65 mm (plastic)
181,5×91,5 mm (metal)
IP Rating IP21
Weight (net) 0,51 kg (plastic)
0,71 kg (metal)
Ceiling Cut-out 156 mm
Temperature range -10 / +55 C°
Mounting spring clamp
Connector 4-pin screw termina
Maximum cable cross section 4,9mm²
Max. cable cross section loop 2×1,2mm²
Colour RAL 9016

Order code

Part No. Description
VCS500EN 5” Ceiling speaker, 6 watts, RAL 9016, metal, certified EN 54-24, BS 5839 compliant, IP21C,
