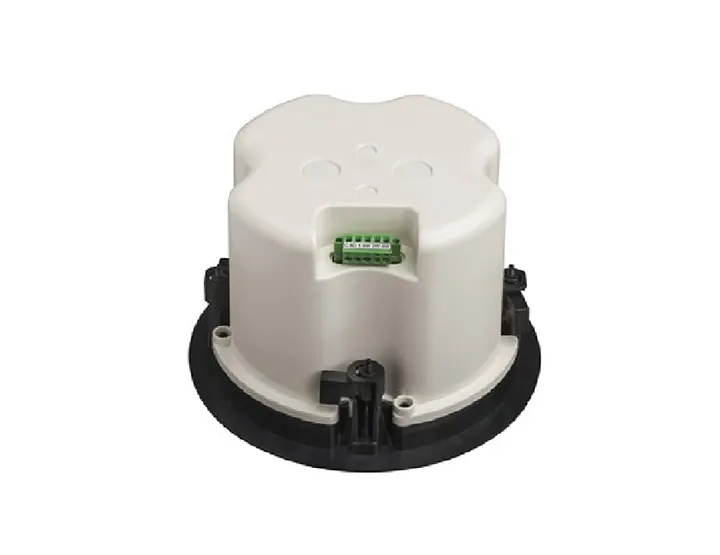

VCS500-2W-10-EN 5” 2-Way 10W Ceiling speaker,ABS, Firedome, certified EN 54-24

Product Number: VCS500-2W-10-EN


2-Way-Ceiling speaker with firedome for voice alarm applications, certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The 10W powered speaker is equipped with a 130mm 2-way system with a high quality tweeter and a 100V transformer with 4 power adjustments. Low impedance operation is also possible.


Read More Order Inquiry


Description

2-Way-Ceiling speaker with firedome for voice alarm applications, certified EN 54-24, suitable for voice announcements and background music with excellent sound quality in buildings.

The 10W powered speaker is equipped with a 130mm 2-way system with a high quality tweeter and a 100V transformer with 4 power adjustments. Low impedance operation is also possible.

The impact-resistant plastic housing in RAL 9016 guarantees long-term stability. A thermal fuse provides additional safety.

Thanks to an innovative magnetic fastening, the finely perforated speaker grille can quickly be removed or replaced by a grille with a different color, even after the installation.

Protection class IP 21C secures the speaker against the impact of environmental influences. The speaker chassis is impregnated against dampness.

Easy installation via the screw mounting system.
• 2-way system
• thermal fuse
• magnetic fastening of grille

Technical Specs

Technical Data (Electrical)

Feature Description
Power 10/5/2.5 (8) W
Impedance (100V) 1000/2000/4000 ohm
Frequency Range 104 – 22.700 Hz
Frequency Response 111 – 21.600 Hz
SPL 1W/1m, peak 92,1 dB
SPL , 1W/4m, peak 80,1 dB
SPL Pmax/4m, peak 90,1 dB
SPL, rated noise power / 4m 88,0 dB
Sensitivity EN54-24, 1W/4m 75,8 dB
Sensitivity EN54-24, 1W/1m 87,8 dB
Dispersion -6dB, 500Hz h/v 180°
Dispersion -6dB, 1KHz h/v 180°
Dispersion -6dB, 2KHz h/v 110°
Dispersion -6dB, 4KHz h/v 72

Technical Data (Mechanical)

Feature Description
Dimensions 216,5 x 141 mm
IP Rating IP21
Weight (net) 1,70 kg
Ceiling Cut-out 186 mm
Temperature range 10 / +55 C°
Mounting Screw system
Connector 5-pin screw terminal
Maximum cable cross section 4,9mm²
Max. cable cross section loop 2×4,9mm²
Colour RAL 9016

Order code

Part No. Description
VCS500-2W-10-EN 5″ 2-Way 10W Ceiling speaker,RAL 9016, ABS, Firedome, certified EN 54-24

Downloads

VCS500-2W-10-EN (422.48 KB)
