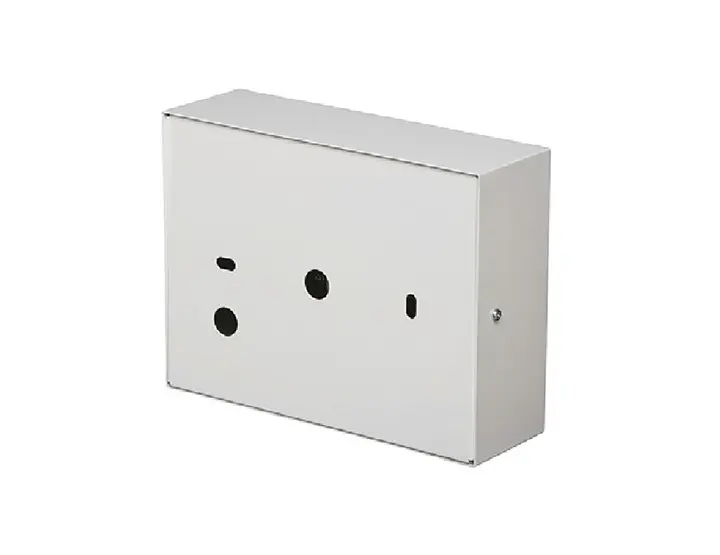

Product Number: VWS-6-M-EN
This speaker is the best choice for sensitive installations like in prisons or industrial projects where plastic and wooden materials cannot be used. The 6W powered speaker is equipped with a 165mm full-range loudspeaker chassis and a 100V transformer with 3
power adjustments.
The extremely stable metal housing in RAL 9010 with corrosionresistant powder coating, offers tremendous resilience in unobtrusive design. For additional reliability, a 2 pin-ceramic block, a thermal fuse is provided and the speaker chassis is impregnated against wetness.
Read More Order Inquiry
Description
This speaker is the best choice for sensitive installations like in prisons or industrial projects where plastic and wooden materials cannot be used. The 6W powered speaker is equipped with a 165mm full-range loudspeaker chassis and a 100V transformer with 3
power adjustments.
The extremely stable metal housing in RAL 9010 with corrosionresistant powder coating, offers tremendous resilience in unobtrusive design. For additional reliability, a 2 pin-ceramic block, a thermal fuse is provided and the speaker chassis is impregnated against wetness.
The speaker is also secured with protection class IP 21C against the risks of environmental influences. The speaker is also compliant with the British Standard BS 5839, Part 8. Quick and easy mounting with screws.
• All-metal construction
• Vandal-proof
• BS 5839
Technical Specs
Technical Data (Electrical)
| Feature | Description |
| Power | 6/3/1,5 W |
| Impedance (100V) | 1667/3333/6667 ohm |
| Frequency Range | 170 – 18.500 Hz |
| Frequency Response | 70 – 23.500 Hz |
| SPL 1W/1m, peak | 98,3 dB |
| SPL , 1W/4m, peak | 86,3 dB |
| SPL Pmax/4m, peak | 94,0 dB |
| SPL, rated noise power / 4m | 90,0 dB |
| Sensitivity EN54-24, 1W/4m | 82,0 dB |
| Sensitivity EN54-24, 1W/1m | 94,0 dB |
| Dispersion -6dB, 500Hz | h=180° v=180° |
| Dispersion -6dB, 1KHz | h=160° v=160° |
| Dispersion -6dB, 2KHz | h=120° v=120° |
| Dispersion -6dB, 4KHz | h=76° v=76° |
Technical Data (Mechanical)
| Feature | Description |
| Dimensions | 252x192x81 mm |
| IP Rating | IP21 |
| Weight (net) | 2,04 kg |
| Temperature range | -10 / +55 C° |
| Mounting | Screws |
| Connector | 2-pin screw terminal |
| Maximum cable cross section | 8mm² |
| Max. cable cross section loop | 8mm² |
| Colour | RAL 9010 |
Order code
| Part No. | Description |
| VWS-6-M-EN | 6W Wall Mount Speaker, Metal, Thermal Fuse, Certiifed EN54-24 |
Downloads
| VELOX VWS-6-M-EN | (558.98 KB) |
|
