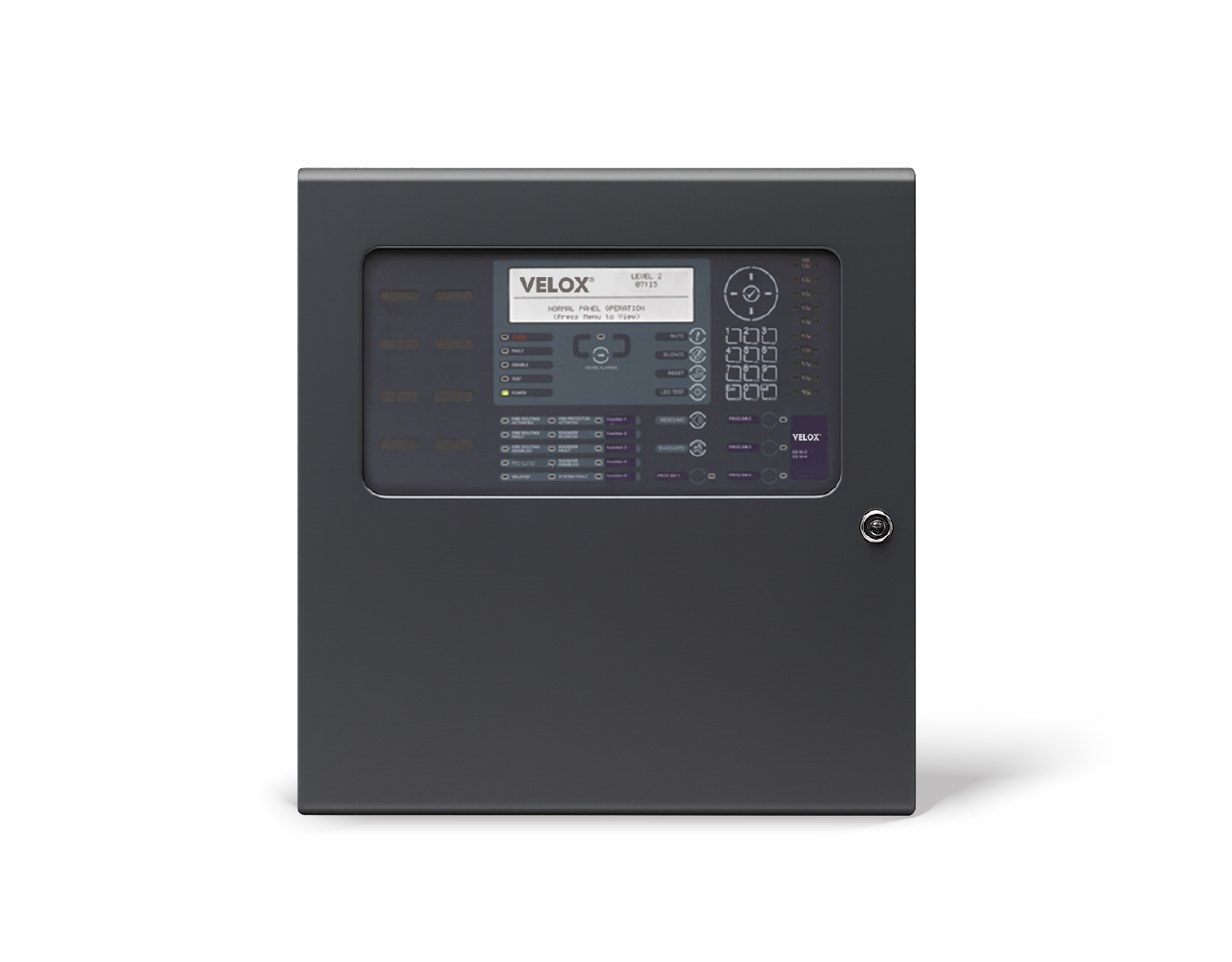

VELOX 5000 Series

Smart Fire Alarm Control Panels

Product Number: 5000

The VELOX 5000 series is fully expandable from 1 to 8 loops and supplied with 2, 4 and 8 and onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 or 8 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flashbased microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad... Read More

Key Features
Technical Specs
Downloads
Related Products
Contact Us

Key Features

Smart fire Detection & Alarm Control Panel
1, 2, 4 or 8 loop formats

+200 devices per loop
Up to 200 fire zones
Advanced networking, peer-to-peer system, with up to 2000 zones
Installer friendly Auto-learn, Loop Detection and Onboard Scope facilities for ease of commissioning and fault finding.
Complex ‘Cause & Effect’ programming options
Programmable push buttons
Integral ‘P-Bus’ for system expansion via available option cards

Technical Specs

Part No.	5100&5200	5400	5800
Number of Loops	1 – 2.	2 – 4.	2 – 8.
Devices per loop	200
Loop Current	500mA per loop
On Board Sounder circuits	2 x 1 Amp Programmable	4 x 1 Amp Programmable	8 x 1 Amp Programmable
On Board Relays	2 x 1 Amp 30v AC/DC programmable (10mA, 5v min) – expandable to 4 using 5042		4 x 1 Amp 30v AC/DC programmable (10mA, 5v min) – expandable to 8 using 2 x 5042
Auxiliary Supply	1 x 24v 500mA		2 x 24v 500mA
Mains Supply	200 – 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A max
Metalwork Options	Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount
Approvals	EN 54-2:1997 +A1:2006 EN 54-4:1997 +A1:2002 +A2:2006 EN 54-13:2005 (Pending) Certified to EN54 Parts 2 & 4 by FM Approvals
Enclosure / Colour	Steel IP30 / RAL7016
Networking	Optional plug in Network Card (5420 – Standard, or 5421 – Fault-Tolerant)

Downloads

VELOX 5000 Series Datasheet

(156.85 KB)
